Filtration System Installed at UK’s Largest Sewage Treatment Works

Thames Water’s Sewage Treatment Works in Beckton, East London is the biggest in the UK and one of the largest in Europe, serving 3.4 million people throughout London. The Works, which is undergoing a major expansion programme, features the latest sludge treatment technology, including a sludge powered generator for energy efficient waste disposal.

The sewage treatment process features eight large screens that can operate continually to remove screenings from the sewage. Following primary and secondary treatment, washwater is fed into the screens via a series of nozzles to wash the sludge off and clean the screens and brushes.

In order to prevent the washwater nozzles from blocking and disrupting the screenings separation process, a Bollfilter (UK) automatic filtration system has been installed in the Beckton Screen House.

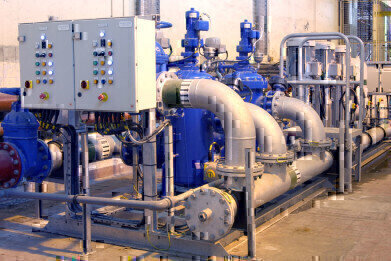

The system which comprises two Boll 6.19 automatic self-cleaning Filters and CCD pumps is mounted on one skid for ease of installation. The 6.19 filters, which operate under low pressure conditions, are fitted to the washwater inlet feed prior to the pumps, with the added benefit of protecting these from possible particulate damage. A small amount of the pressurised washwater is fed back into the filters for efficient cleaning without the need for separate backflush pumps, creating a low energy, space efficient filter/pump solution.

The Beckton filter skid is the second similar installation fitted by Laing O’Rourke for Thames Water.

Kevin Woolley, Laing O’Rourke’s Construction Manager explains the choice of the Boll 6.19 low pressure system. “We have found Boll filters to be very good. We installed a similar installation at the Thames Water’s Deephams STW, following problems with two previous filter systems. The Boll filters have worked well ever since.”
