Straight Shooting Chopper Pumps Hit the Target in Gun Barrel City

In Gun Barrel City’s wastewater treatment plant, sewage first enters an equalisation tank before it actually goes to the site’s bar screens.

As any operations manager will probably suggest, this particular equalisation tank in Texas must have pretty sturdy pumps to cope with all the solids that come their way.

Located southeast of Dallas, East Cedar Creek Fresh Water Supply District (ECCFWSD) operates two WWTPs in the Mabank area close to Cedar Creek Reservoir for a total population of 20,000 - one in its southern sector, whilst Gun Barrel City serves the north.

Built in 1979 with a treatment capacity of .626 MGD and a surge capacity of 1.3 MGD (for a period not to exceed two hours), the WWTP at Gun barrel City has since undergone a series of upgrades costing over $1.5M, giving the district a new treatment capacity of .750 MGD. The major part of the investment cost was for the construction of a 1-MGD tertiary clarifier to treat and reduce phosphorous limits to a 1 part per million (or less) prior to discharging effluent from the treatment facility directly to Cedar Creek Reservoir.

Keeping everything shipshape is a dedicated team led by Operations Manager James Blodgett, who has worked with ECCFWSD for the past 11 years. Responsible for the two plants and 75 lift stations, there is plenty to keep everyone on their toes.

“During a normal day the levels in our equalisation tank here in Gun Barrel City don’t get too high”, says James, “but in a rain event when we have to store the extra flow in our holding tank, we certainly don’t want the contents to go septic and cause odour problems.”

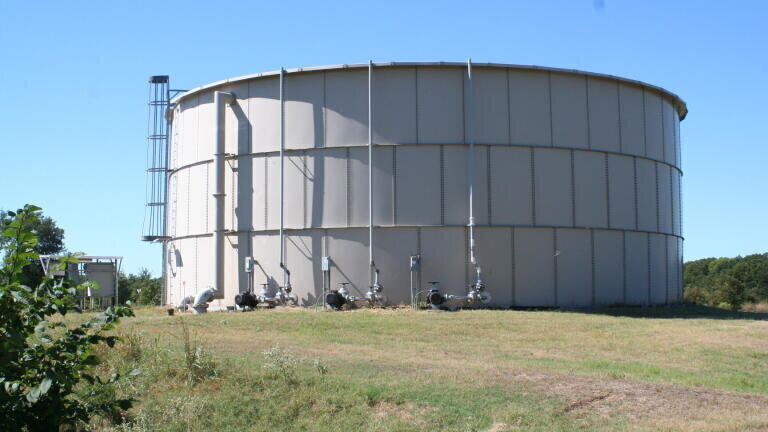

He added: “For over a decade we have used six Landia AirJets, which are 30 HP chopper pumps that help break down all the incoming solids, as well as mixing and aerating the tank.  It is a very strong and reliable system that does much more than just pump.”

Rain events are just one challenge in this part of Texas, renowned for its weather extremes. The externally mounted pumps are subjected to everything from ice storms to temperatures of 110F. But despite the severe climatic challenges, all but one of the six original pumps still has its original seal, as James explains:

“As well as visual and audio inspections, we carry out oil changes every 2000 hours, which does prolong seal life,” he said, “but considering that the pumps have been here since 2004, that’s quite a record!  We mainly take in domestic sewage with all the grit and rags you’d expect. We also receive some non-domestic waste, including from the local hospital, but none of it troubles the Landia units. They just keep on macerating the solids. It’s a system that works very well for us.”

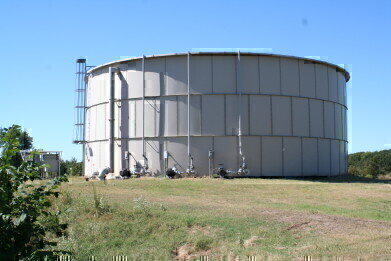

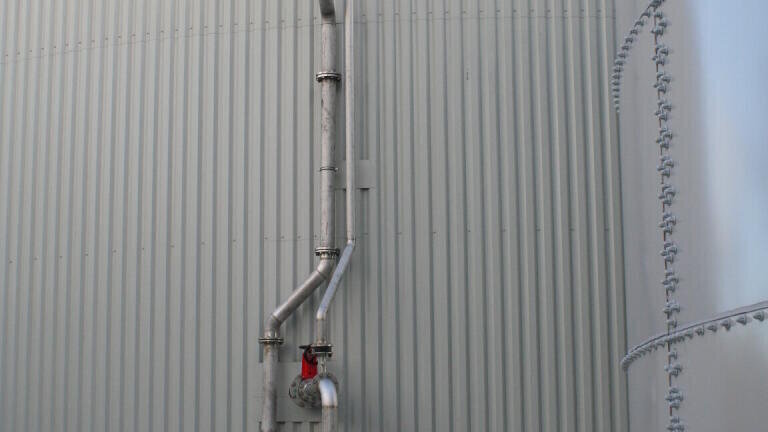

Designed with an external knife system, there are usually (depending on tank levels), one or two of the six Landia pumps running 24/7 at Gun Barrel City, allowing for the amount of aeration and mixing to be adjusted according to the liquid volume in the equalisation tank. Comprising a chopper pump and Venturi nozzles (angled appropriately to suit tank size), the clog-free AirJet is a propeller-free aerator that unlike traditional diffused air systems, will maintain good levels of oxygen transfer even when the concentration of solids increases.  AirJets also offer very easy maintenance because they do not require the tank to be drained.

Art Savage from Landia commented:  “James and his team at Gun Barrel City are spot-on with their maintenance, which is why they benefit from such a high level of sustained performance from the equipment. It’s a testimony to our pumps that they have such a long life. We do find some installations where instead of a preventative maintenance program, there’s more of a ‘run ‘til failure’ regime. This could almost be taken as a compliment, but it’s definitely not something we’d recommend!”

He added:  “Installing a self-aspirating aeration system that incorporates the best heavy-duty chopper pumps should result in a completely clog-free operation and a homogenous mixture for higher air-to-water transfer. In addition to a trouble-free operation, energy bills alone can be reduced significantly. What was costly laborious maintenance can instead become simple and economic.”

The Texas Commission on Environmental Quality continues to raise the bar on standards, so James Blodgett is acutely aware of the ever-demanding consent levels required before final discharge to Cedar Creek Reservoir. Upgrades to the plant’s capacity have presented more challenges to the treatment process, including odour control.

“Because the AirJet can constantly aspirate more air, we’ve not had any odour issues”, James reports.  “The oxygen transfer levels are always maintained, even when we get a higher concentration of solids, so our wastewater is always aerated properly and never goes septic. As I’ve said, we have to be wary of rain events and other weather extremes. Our equalisation tanks with the Landia pumps have been hit by lightning on more than one occasion, so you could say that they’ve also been smoke-tested.”
