Japanese skimmers clean the Paris Metro

First things first: the old contamination has to go. Modern skimmer pumps are used in the construction of Metro line 14 in Paris.

They extract contaminated surface water from multiple collecting basins. The client DPG brought them in to the construction project in the north-west of the French capital, where the Metro network is currently being extended. The city is expanding the underground station Mairie de Saint-Quen on line 13 into an interchange. Line 14 is being extended to the station at the same time. The new sections are planned to begin operation in 2017.

One section of the site previously housed a rail yard. Following its demolition, the cleansing of the around 2000 m² site is now in full swing. The work is scheduled to take 15 months. One of the problems faced is the soil, which is infiltrated with crude oil residues and other harmful substances, and the contaminated water produced during the work on this soil.

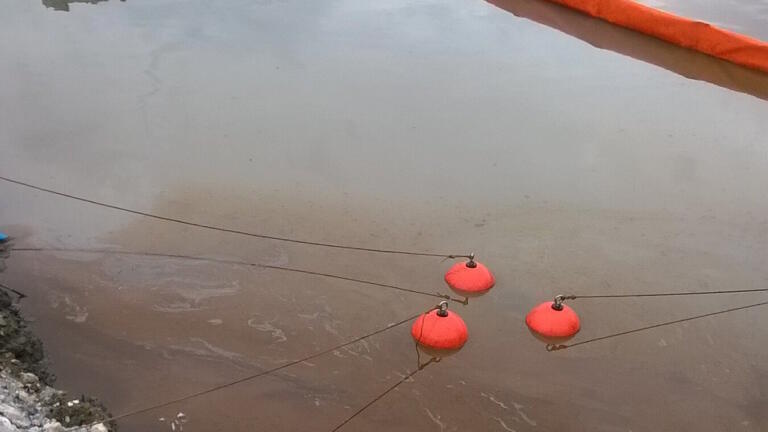

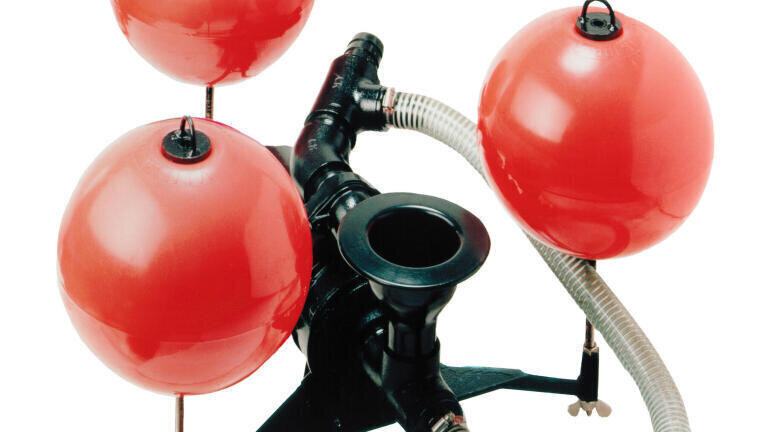

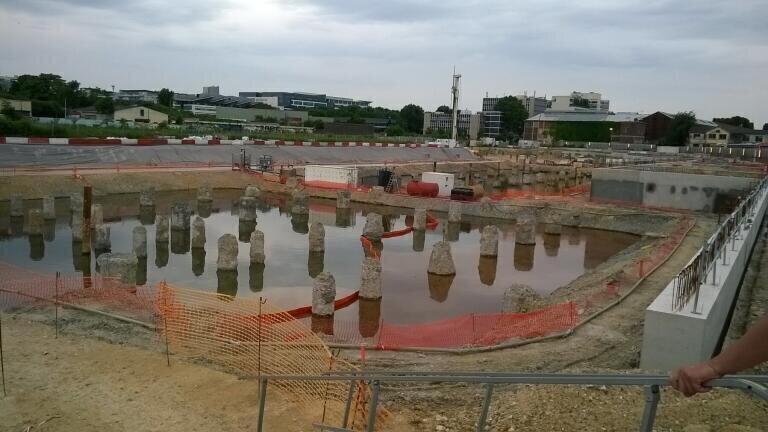

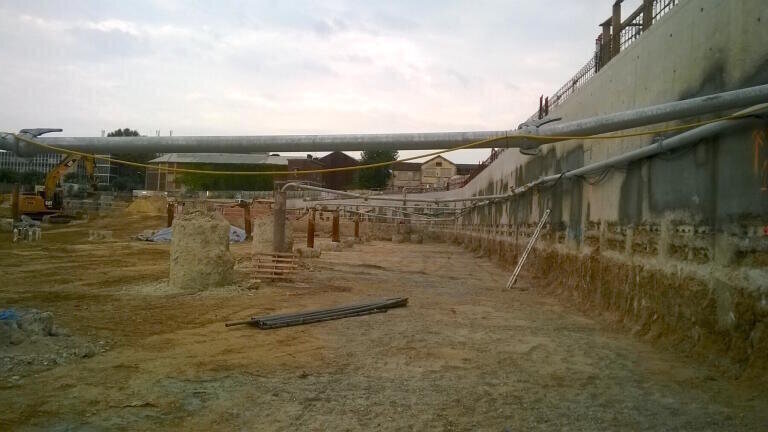

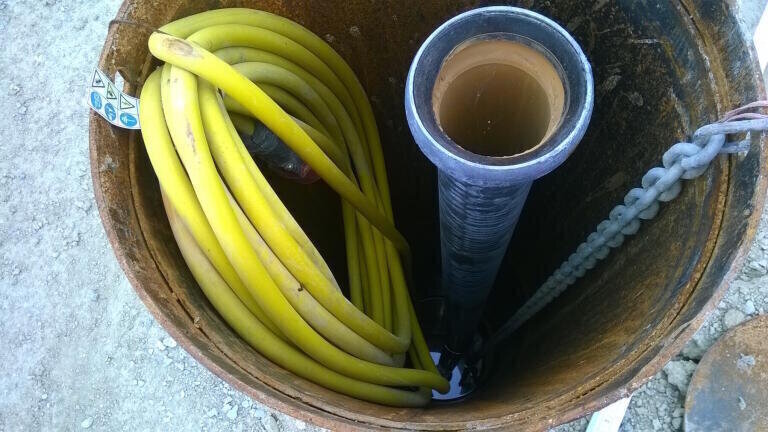

72 wells and two large basins with skimmer pumps have been installed to pump the polluted water out of the site. After the sedimentation stage, the Tsurumi 8-FSP submersible scum skimmers draw off the film of harmful substances. They are clearly identifiable by their three ball floats in striking red. Each skimmer extracts around 250 l/min. The poisonous liquid is pumped on to the locally-installed treatment plant from GRS Valtech. According to the manufacturer, an engine power of just 750 Watt is sufficient. The suction opening of the floating extractor, which is secured with steel wires, is around 50mm below the surface of the water. The generators create a circular current and thus underpressure that sucks the contaminated surface water into the 50mm hose. This principle guarantees a stable suction effect: even air or foreign particles are sucked in. The distance from the water surface is adjustable. Any foam on the surface is sucked in too, before it can be carried off by the wind.

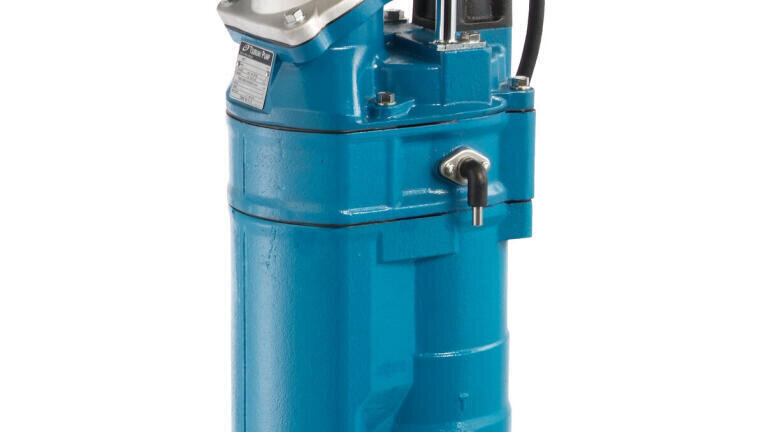

Appropriately, DPG also uses products from the Japanese manufacturer for the wells – specifically the KTZ series, a universal construction site pump for contaminated water that, like the skimmers, was purchased from CE2A in Venelles. Tsurumi is considered the world market leader in this segment, and has its European headquarters in Düsseldorf. The KTZ47.5 model used extracts 1400 l/min from the suction pool and achieves conveyance heights of up to 40 meters. In terms of numbers, however, the sister series KTZE and its 37.7 is more strongly represented. Although it conveys slightly less at 900 l/min, it is controlled autonomously via a sensor. As an electrode, it is all but wear free, as it has no moving parts. It switches on the pump when the water level rises and, when the level falls again and a certain period has passed, switches it off again.
