The Largest Advancement in Hose pump Technology just got Bigger

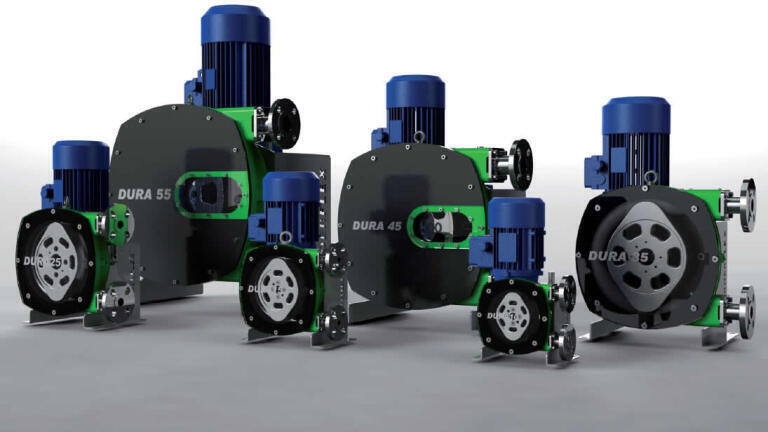

Verderflex® is delighted to announce the launch of the Dura 35 to WEFTEC, the latest addition to the ground breaking Verderflex Dura range of peristaltic hose pumps.

The Dura range is a genuine advancement in peristaltic pump technology, it benefits from longer hose lives; Less frequent and shorter downtime; Saving space; Using less power and Being more economical to run

Up until now you couldn’t get a Dura that could pump more than 1,700 l/hr (450 US GPH) but now things are getting bigger and better.

The new Dura 35 delivers a maximum continuous flow rate of 3,180 l/hr or 840 GPH at pressures up to 16 Bar or 230 PSI. Weighing just 125 kg and taking up to 70% less floor space than similar pumps, the Dura 35 will free up vital working areas to replace more outdated technology.

Featuring advances in component design to reduce maintenance time and ease installation, the Dura 35 removes the need for specially trained engineers, reducing plant costs and increasing profits.

Already exhibited at Pollutec in Lyon, France and at Achema in Germany, the new Dura has caused quite a stir in the industry. See it for yourself at WEFTEC on the GPM booth.
Hall B, Stand 4435.

Duncan Brown, Sales Manager for Verderflex says ‘I’m very excited about the new addition of the Dura 35 to the range. We have seen massive success with our existing Dura products and now we have taken another step in revolutionising hose pumps. We are adding further models to the range soon so that more industries can enjoy the many benefits of Verderflex Dura pumps’

Features and benefits of the Dura hose pump

Dura has fewer system components than other peristaltic pumps, reducing downtime with a novel drive configuration that requires much less space. Running at a significantly lower operating temperature than equivalent pumps, hose life is improved by up to 40%.

Dura offers greater reliability over other pumps due to its rigid drive connection. The rotor is mounted directly over the bearings, so there is no overhung load, further reducing the number of parts in what is already a very simple and elegant design. The rotor has been designed so that it requires no shims, simplifying installation and reducing the Dura’s overall power consumption.

Designed so that the drive is mounted on a torque arm and totally isolated from the housing. There is an air gap between pump casing and gearbox which protects both the pump lubricant, inside casing and the drive’s gearbox. They can ‘never’ cross contaminate and there is no need to remove the drive when servicing the pump.

A one piece taper lock flange connection speeds up hose changes and the universal slotted connection offers a one size fits all solution, meeting the requirements of ANSI, JIS and PN16, improving part availability.

Dura also offers health and safety benefits in the form of quieter action and drive configuration.
